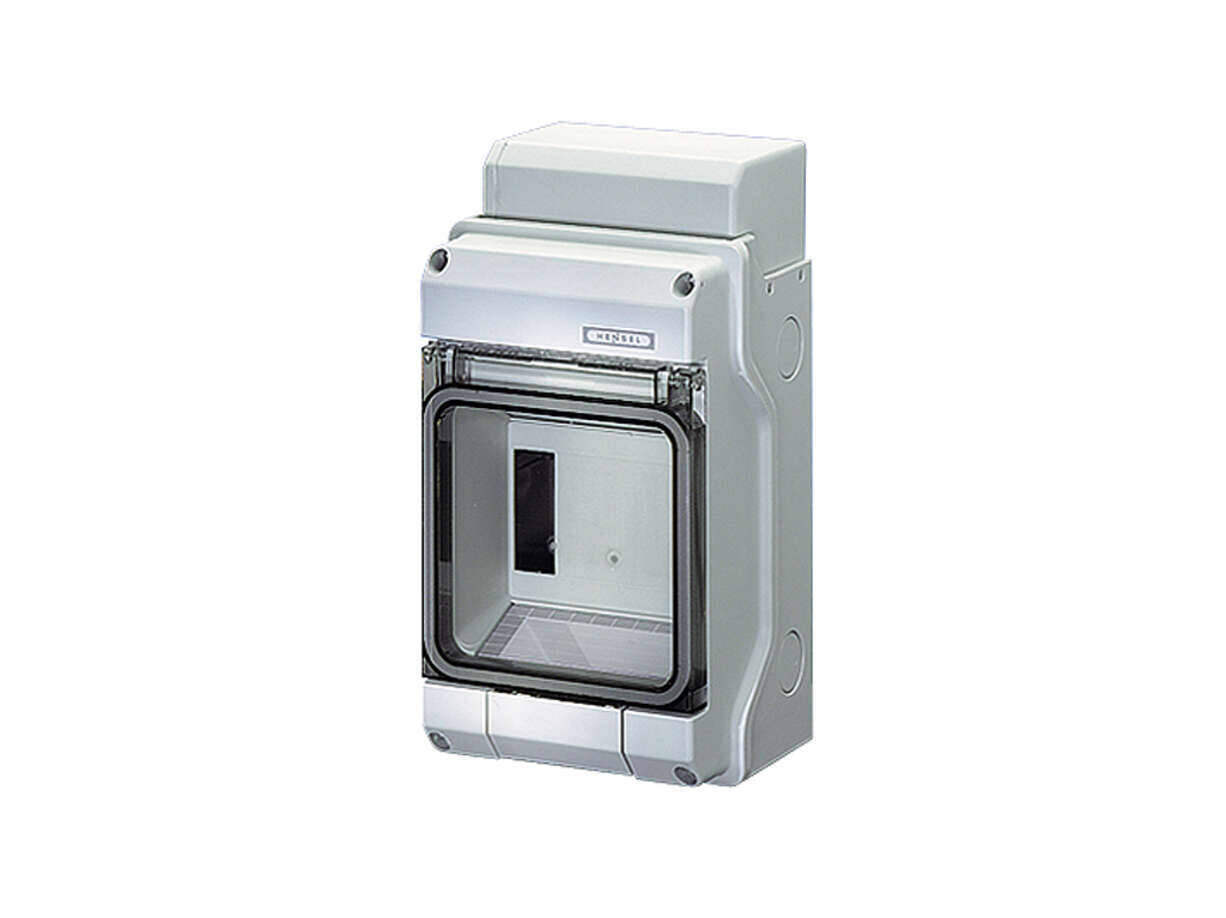

Hensel Circuit Breaker Box 4.5Mod

4.5 modules: 1 x 4.5 x 18 mm
1-row
knockouts: top and bottom walls 2x M20 and 1x M25/32 each
per PE/N number x cross section 2 x 25 mm², 4 x 4 mm² Cu, FIXCONNECT^® terminal technology, for terminal technology refer to technical data
for the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
with transparent lid, sealable
locking device for hinged lid and sealing facility see accessories
with cable entry cover
protective cover can be cut out
degree of protection: IP 65
colour: grey, RAL 7035

Weight	0.614 kg
Dimensions	126 × 111 × 228 mm
